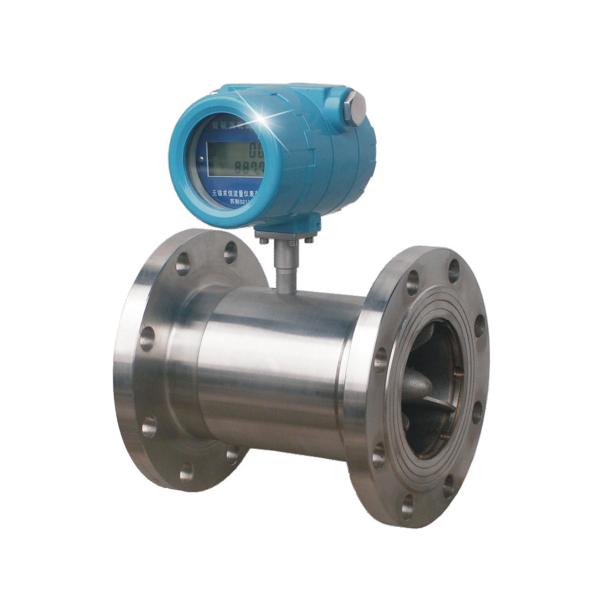

RS485 Turbine Flow Meter Flange Port

  • 1
  • 2

Brand Name : Iflow

Model Number : LUGB80

Certification : ISO9001, CE

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500 sets per month

Delivery Time : 2-4 weeks

Packaging Details : carton

Name : turbine flow meters

Pipe diameter : 3"

Display : Local LCD

Communication : RS485, 4-20mA, pulse

Connect port : quick connect flange

Compensation : no, temperature, pressure, temperature&pressure

Media : liquid/air/steam weight or cubic flow

Power : Lithium battery

Contact Now

Turbine high pressure air flow meters for machine oil and hydraulic oil, high precision,Pipe size DN15-200

The characteristics of turbine flow meters:

DN (mm) flow range (m3/h)

media

temp.

(℃)

Pressure

rating

PN (MPa)

ambient

temp.

(℃)

RH

(%)

Pressure

loss

(MPa)

aterror

±0.2%*

 aterror ±0.5% aterror ±1%
Max Min Max Min Min Max
2A 0.03 0.15 -20~+120 6.3 16 25 40* -25~+55 ≤80
0.15
4A 0.04 0.25
0.12
6A 0.1 0.6
0.08
10A 0.2 1.2
0.05
15A 0.6 4 0.6 6
0.035
25A 1.6 10 1 10
40A 3 20 2 20 2.5
0.025
40B 2 20 2 20
50A 6 40 4 40
50B 4 40 4 40
80A 16 100 10 100
80B 10 100 10 100
100A 25 160 20 200 1.6 or 2.5
100B 20 200 20 200
150A 50 300 40 400
150B 44 400 40 400
200A 100 600 80 800
250A 160 1000 120 1200 1.6
300A 260 1600 180 1800

Model selection

Model Code Explaination
LW turbine flow meter
G transducer
Q gas
Y liquid
Diameter －2 2mm(thread G3/8”)
－4 4mm(thread G1/2”)
－6 6mm(thread G1/2”)
－10 10mm(thread G1/2”)
－15 15mm(thread G1”)
- 20 20mm(thread G1”)
－25 25mm(thread G11/4”)
- 32 32mm(thread G11/2”)
－40 40mm(flange)
－50 50mm(flange)
－80 80mm(flange)
－100 100mm(flange)
－150 150mm(flange)
－200 200mm(flange * or insert)
－250 250mm(flange * or insert)
－300 300mm(flange * or insert)
Precision A 1%
B 0.5%
C 0.2%*
Output M LCD and 4～20mA
J remote type converter
S remote converter and 4～20mA
I 4～20mA
T LCD
P Pulse
Pressure rating C1 PN1.6MPa
C2 PN2.5MPa
C3 PN4.0MPa
C4 PN6.3MPa
C5 PN16MPa
C6 PN25MPa
C7 PN40MPa
Explosion proof /NE None
/EX dⅡBT4
temperature /NE normal
/HE 120≥high temperature≥150℃
Specials /□ please specify
